The Development Story Behind CPP’s New All-Plastic 2" Threaded IBC Vent

If you’ve ever specified, filled, stored, or shipped an IBC, you’ll know the vent is one of those parts that gets noticed only when it doesn’t do its job. Too tight and the container can pull a vacuum as product discharges. Too loose and you can end up with nuisance leakage, odour issues, or a vent that “breathes” when it shouldn’t. And when you’re dealing with aggressive liquids, the vent’s internals can become the weak link long before the IBC itself.

That’s exactly why we set out to develop a new CPP all-plastic 2" threaded IBC vent: a purpose-built, robust, repeatable design that solves common real-world vent problems—without relying on metal springs or mixed-material assemblies.

This is the story of how it came together.

Why an all-plastic vent?

Traditional pressure/vacuum vents often use metal springs, pins, or retainers. In many general applications that’s fine. But in IBC service, especially with chemicals, that metal can introduce three recurring headaches:

  1. Chemical compatibility risk
    Stainless is “good” in a lot of environments—until it isn’t. Certain oxidisers, chlorinated solutions, acids, or salt-rich liquids can accelerate corrosion, pitting, or stress-corrosion issues. Even when it doesn’t fail outright, it can change performance over time.
  2. Inconsistent opening performance
    Springs vary. Assemblies vary. Tolerances stack. In venting, small variations can matter because the pressures involved are low.
  3. End-of-life uncertainty
    A vent is meant to be boring. When internals change condition gradually, it’s hard to know when “good enough” became “not good”.

So the aim was clear: remove metal from the equation and create a vent that stays consistent, predictable, and easy to support across a wide range of IBC applications.

Starting with the real duty cycle: vacuum comes first

IBC venting isn’t just a theoretical airflow requirement—it’s a behaviour requirement.

When an IBC discharges from the bottom valve, the liquid level falls and the container needs to “inhale” to avoid panel flexing and vacuum distortion. In practice, that means:

  • A low, reliable vacuum crack so air can enter early (before the IBC starts pulling in)
  • Enough movement after cracking to deliver meaningful airflow, not just a tiny “flutter”
  • Stable sealing when closed to prevent nuisance breathing, odours, or weeping

In the CPP design brief, we focused heavily on vacuum performance because that’s what protects the IBC during discharge. That set the core mechanical challenge:

Create a repeatable, low-crack vacuum function using plastics and elastomers—then make it manufacturable at volume.

The engineering challenge: low pressures, tight tolerances

Venting at low pressures is deceptively tricky. At small differential pressures, tiny changes in geometry, surface finish, or material stiffness can alter behaviour.

So we treated the vent like a system:

  • The sealing interface (where “closed” really means closed)
  • The moving element (poppet/disc)
  • The elastic element (our “spring” without metal)
  • The flow path (air in and out)
  • The body and thread interface (how it mounts to the IBC, how it resists vibration/handling)

A key part of development was defining the “sweet spot” where the vent:

  • opens when it should,
  • opens enough to matter,
  • and closes positively without sticking, creeping, or taking a set.

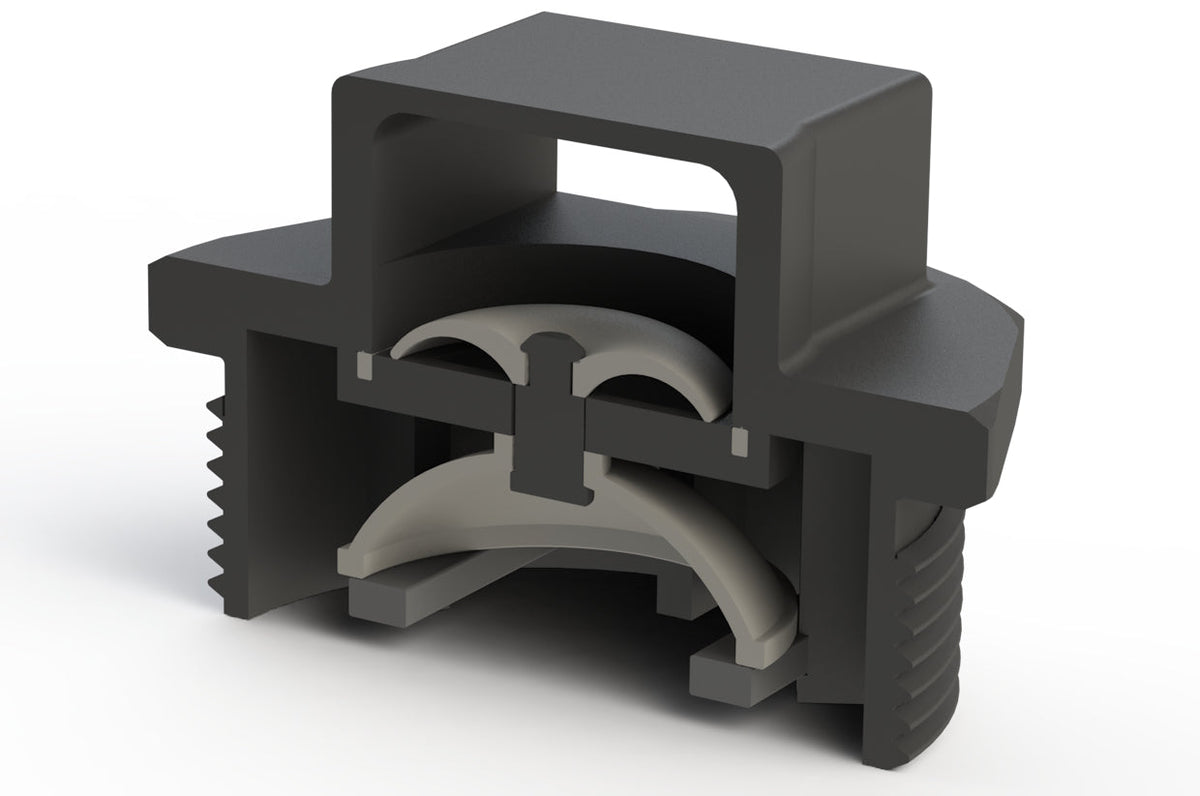

Materials and architecture: robust plastics, controlled elasticity

An all-plastic vent doesn’t mean “soft” or “fragile.” In fact, the structure needs to be stiff and stable, especially around the thread and seat.

The approach we took was a stiff structural body paired with a controlled elastic element that provides the closing force. Instead of a metal spring, the closing force comes from engineered polymer/elastomer geometry—designed to be consistent, predictable, and tolerant of manufacturing variation.

This architecture brings several practical advantages:

  • No corrosion pathway
  • Fewer dissimilar materials
  • Simplified assembly
  • Repeatable crack behaviour by design (geometry-driven)

And crucially, it allows the vent to be optimised for how IBCs actually behave in the field, not just what a bench test looks like.

Flow path development: letting the vent actually vent

A common frustration with compact vents is that they technically open—but the flow path is restrictive, so the IBC still pulls a vacuum. That’s why the development process didn’t stop at “it cracks.”

We iterated the internal air route to reduce unnecessary losses:

  • avoid sharp turns where possible,
  • maintain effective open area,
  • keep the moving element stable (no chatter),
  • and protect the sealing surfaces from turbulence and contamination.

The goal: a vent that breathes freely when open and seals cleanly when shut.

Prototyping: the unglamorous loop that makes it work

Most of the “real” development happens in the loop:

  1. Prototype a geometry
  2. Test crack behaviour and reseal
  3. Observe how it behaves across temperature and repeated cycles
  4. Adjust geometry and interface details
  5. Repeat until it behaves like a production part

The big lessons tend to be practical:

  • a sealing edge that looks perfect in CAD might be too sensitive to mould finish,
  • a moving element can “self-align” nicely—or it can find a way to stick,
  • an elastomer profile can be strong enough on day one and then relax after cycling unless designed correctly.

That iteration is why good vents feel simple when you finally hold them—because all the complexity has already been wrestled out.

Designing for manufacturing: moulding reality matters

Once the behaviour is right, the next question is: can you make it consistently?

For injection moulded components, this means designing around:

  • tool wear over time
  • parting line location
  • gate position and knit lines
  • thread form repeatability
  • surface finish control on sealing areas
  • assembly method that’s fast and foolproof

We engineered the vent so that performance isn’t dependent on “perfect” parts—because no high-volume process delivers perfection forever. Instead, we worked toward a design that’s naturally stable and tolerant.

What this means for users

The point of this vent isn’t to be clever—it’s to be dependable.

In practical terms, an all-plastic 2" threaded vent offers:

  • Improved chemical resistance profile by removing metal internals
  • Lower maintenance anxiety (no corrosion surprises)
  • Consistency over time through geometry-driven spring behaviour
  • A straightforward threaded fit for common IBC top openings
  • A robust venting response during discharge to protect the IBC

And just as importantly, it gives specifiers and operators a vent option that aligns with how IBCs are actually used: stored, moved, filled, discharged, and often exposed to the kind of environments that punish mixed materials.

Where we go next

Development doesn’t end at launch. The best products evolve through:

  • field feedback,
  • application learnings,
  • and continuous refinement.

As adoption grows, we’ll keep expanding guidance around best practice vent selection—especially where chemical exposure, vapours, temperature swings, and duty cycles are more demanding.

Because in IBC handling, small components are often the difference between a smooth operation and a day you don’t want to repeat.
